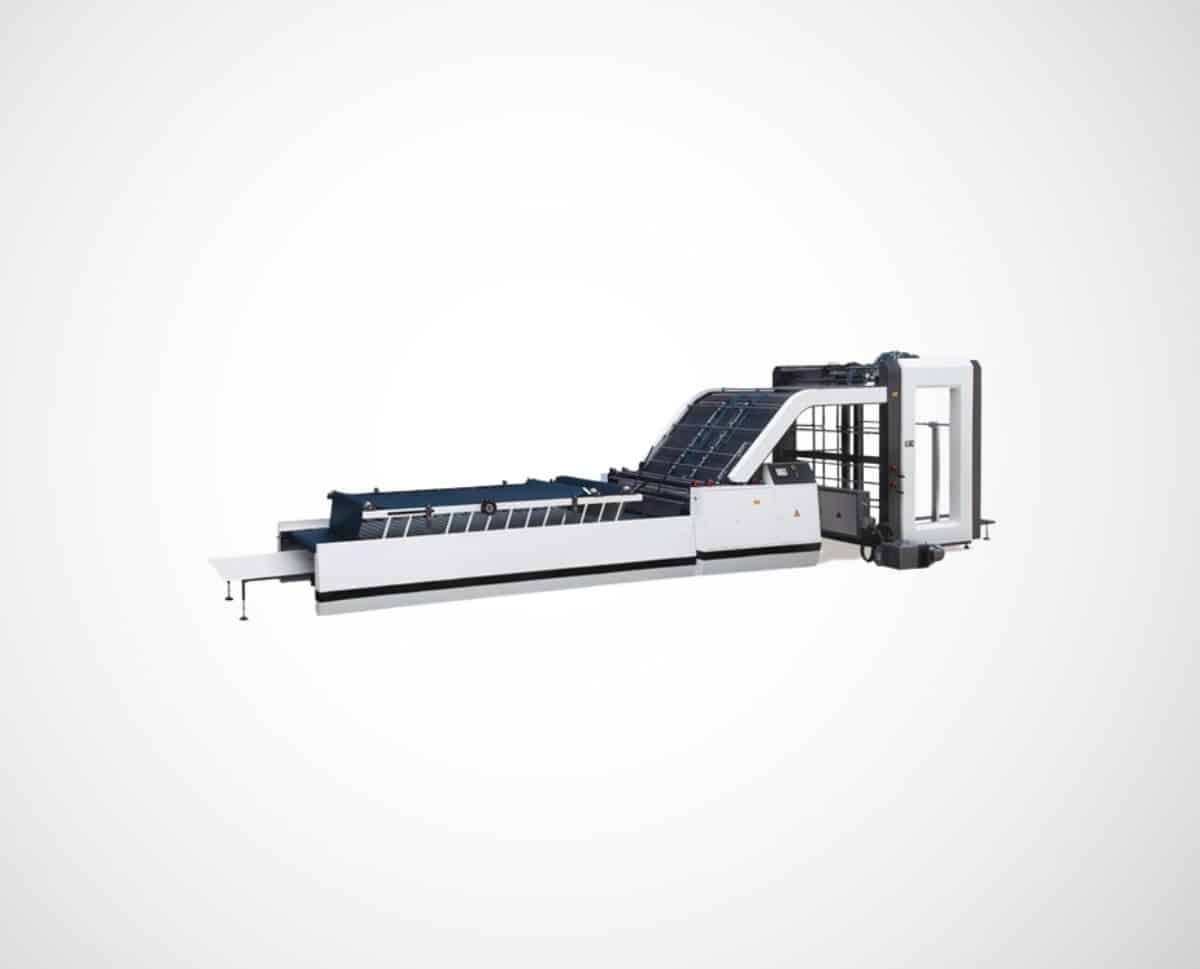

Discover the Champion ASL BY 57 Flute Laminator, engineered for flawless color top sheet and corrugated paper lamination. Featuring a continuous paper feeding system for the top sheet and a unique front gauge positioning method, this machine guarantees precise alignment without exceeding the bottom paper's dimensions. Streamlined for user-friendly operation and maintenance, it ensures efficiency and reliability in every use.
Play Video
Discover more about this product
Download Brochure
| Technical Specification | |
|---|---|
| Max sheet size | 1450*1300mm |
| Min sheet size | 400*400mm |
| Top sheet thickness | 150-500GSM |
| Bottom sheet thickness | A/B/C/E/F Corrugated paper, Industrial board |
| Max speed (sheets/hour) | 6000sheet/hour |
| Fitting precision | ±1mm |
| Dimensions | 11.5*2.2*2.4M |
| Machine weight | 5500kgs |
| Machine power | 11KW/380V, 50/60 Hz |
| Country of origin | China |
